产品名称

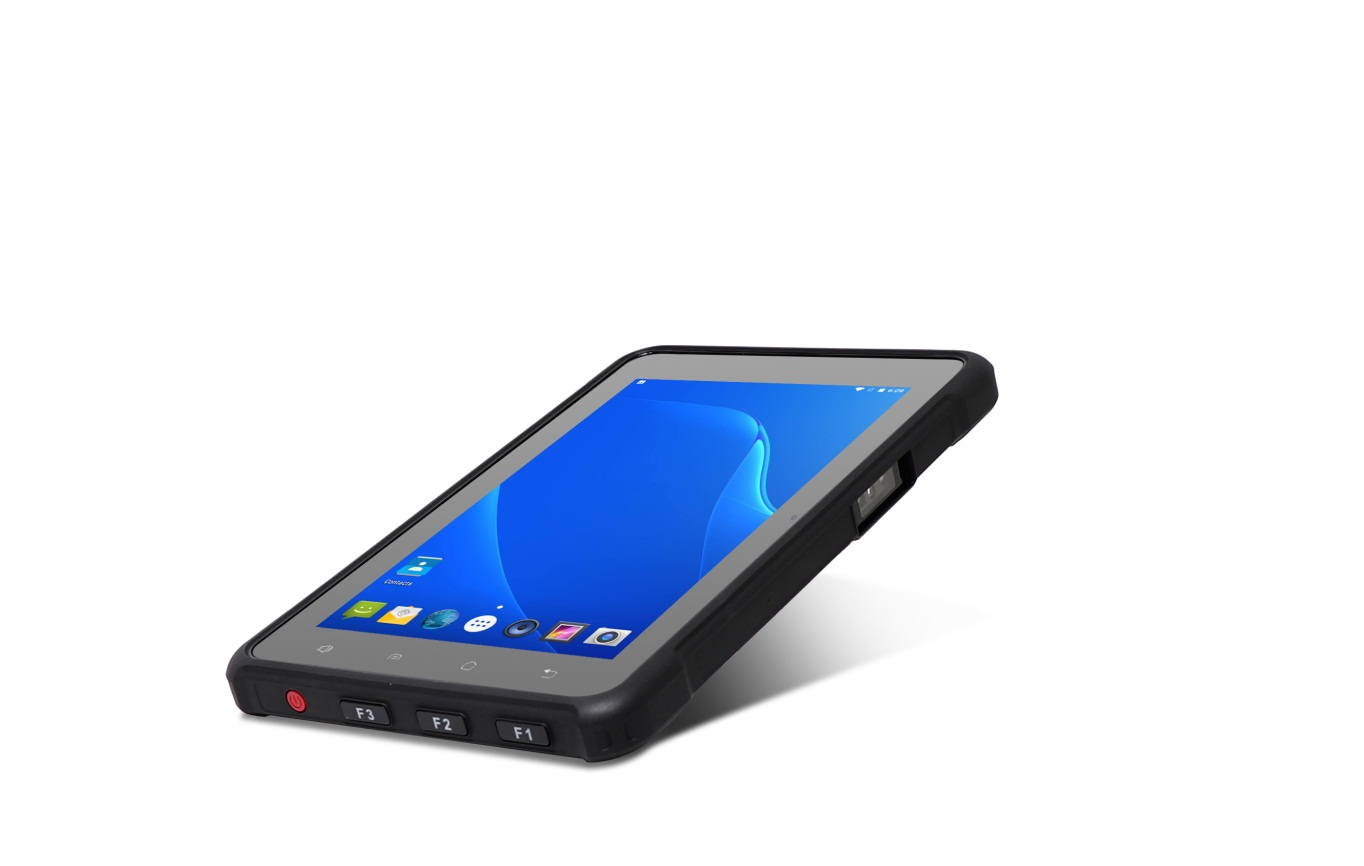

P8 is extend HW product serials into Android OS 10.0 industrial tablet.
P8 is Guang Zhou DADAO serial products extend HW product serials into Android OS 10.0 industrial tablet. Inside the compact tablet terminals, sealing level of IP67 water/dust proof, 1.2 m drop survival, ergonomic design, over-molding structure, extremely large internal 8000mAh battery, and 8.0 inch tough Gorilla Glass 3 screen are all equipped to ensure performance. Fast 2.0GHz octa-core processor 2GB RAM/16GB ROM or 4GB RAM/64 GB ROM and up to 256GB expansion are all designed to boost up experience level.
FEATURES
-------------------------------------------------------------------------------------------------------------------------------------
Industrial and Humanized Hardware Design
Industrial&humanized keypad design and tough 8.0 inch Gorilla Glass 3 touch screen together with high resolution of 1280*800 display shall match high standards in logistics, express and retail.
Quad-Core Processor&Large Memory
Android 10.0 OS with memory of 2GB RAM/16GB ROM or 4GB RAM/64GB ROM shall provide the highly standard experience
Superior Data Communication and Security Guarantee
Double insurance of 4G &WIFI network and highly secured Android 10.0 system shall provide the high speed data communication and perfect security guarantee;
|
SPECIFICATIONS |
|||
|
PHYSICAL CHARACTERISTICS |
|||
|
Dimension |
230mm(H)x142mm(W)x18mm(D)±2 mm |
||
|
Weight |
Net Weight :600g (including battery&wrist strap) |
||
|
Display |
8.0 in. TFT-LCD(1280x800)touch screen with backlight |
||
|
Backlight |
LED backlight |
||
|
Keypads |
4 TP keys, 4 function keys, |
||
|
Expansions |
1 SIM, 1 TF, 2 PSAM |
||
|
Battery |
Rechargeable li-ion polymer, 3.8V,8000mAh |
||
|
PERFORMANCE CHARACTERSTICS |
|||
|
CPU |
Cortex A73 2.0GHz octa-core |
||
|
Operating System |
Android 10.0 |
||
|
Storage |
4GB RAM/64GB ROM, MicroSD(max 256GB expansion) |
||
|
USER ENVIRONMENT |
|||
|
Operating Temp. |
-20℃ to 50℃ |
||
|
Storage Temp. |
-20℃ to 70℃ |
||
|
Humidity |
5%RH to 95%RH(non-condensing) |
||
|
Drop Specifications |
1.2 m drop to concrete across the operating temperature range |
||
|
Sealing |
IP67, IEC compliance |
||
|
ESD |
|||
|
DEVELOPMENT ENVIRONMENT |
|||
|
SDK |
Handheld-Wireless Software Development Kit |
||
|
Language |
Java |
||
|
Environment |
Android Studio or Eclipse |
||
|
DATA COMMUNICATION |
|||
|
WWAN |
TDD-LTE Band 38, 39, 40, 41 FDD-LTE Band 1, 2, 3, 4, 7, 17, 20; WCDMA(850/1900/2100MHz); GSM/GPRS/Edge (850/900/1800/1900MHz); |
||
|
WLAN |
2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac |
||
|
WPAN |
Bluetooth Class v2.1+EDR, Bluetooth v3.0+HS, Bluetooth v4.1 Bluetooth v.4.2 |
||
|
GPS |
GPS(embedded A-GPS), accuracy of 5 m |
||
|
DATA CAPTUER |
|||
|
BARCODE READER(OPTIONAL) |
|||
|
2D barcode |
2DCMOSImager |
N1/Others |
|
|
Symbologies |
PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc. |
||
|
COLOR CAMERA |
|||
|
Resolution |
Rear 13 megapixel, front 5.0 megapixel |
||
|
Lens |
Auto-focus with LED flash |
||
|
RFID READER(OPTIONAL) |
|||
|
RFID LF |
Frequency |
125KHz/134.2KHz(FDX-B/HDX) |
|
|
Protocol |
ISO 11784&11785 |
||
|
R/W Range |
2cm to 10 cm |
||
|
RFID HF/NFC |
Frequency |
13.56MHz |
|
|
Protocol |
ISO 14443A&15693 |
||
|
R/W Range |
2cm to 8cm |
||
|
RFID UHF |
Frequency |
865~868MHz or 920~925MHz |
|
|
Protocol |
EPC C1 GEN2/ISO 18000-6C |
||
|
Antenna Gain |
Circular antenna(2dBi) |
||
|
R/W Range |
|||
|
ACCESSORIES |
|||
|
Standard |
1xPower Supply 1xDC charging cable 1xUSB data cable |
||
